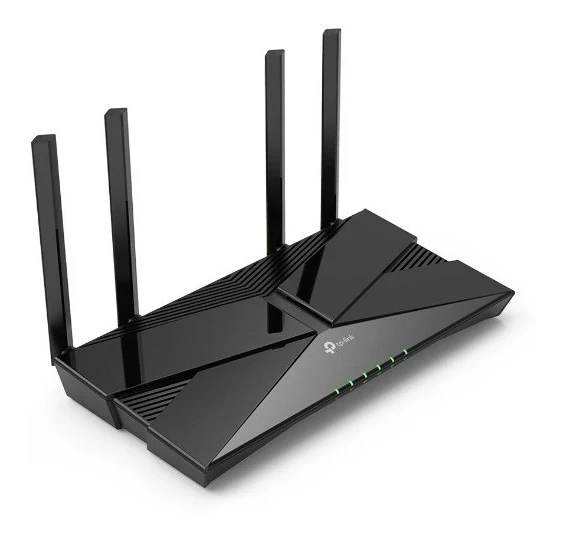

TP-Link Archer EX220 AX1800 Dual Band Gigabit Wireless Router (5dBi) is equipped with Wi-Fi 6 wireless technology to deliver faster speeds and wider whole-home coverage, allowing you to enjoy streaming, downloads, and gaming without interruptions. With OFDMA technology, more devices can connect simultaneously. Easily set up your TP-Link EX220 using the TP-Link Aginet app. The Gigabit Ethernet ports allow you to connect PCs, Smart TVs, and game consoles for stable wired connections.
Technical Specifications
Hardware

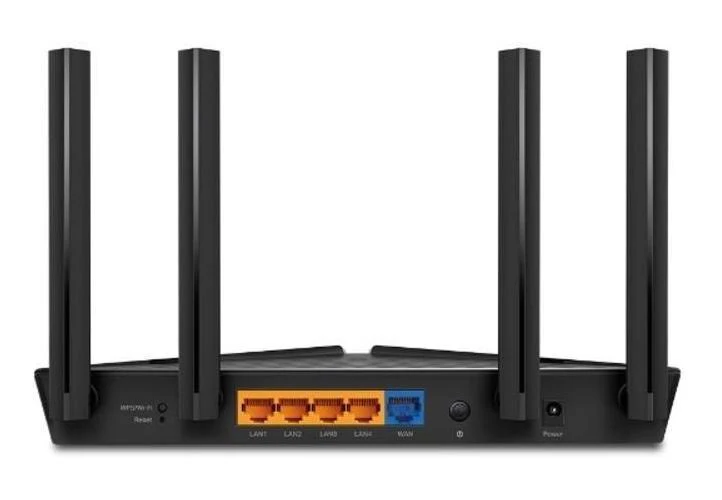

- Interface: 1× RJ45 WAN port 10/100/1000 Mbps, 4× RJ45 LAN ports 10/100/1000 Mbps
- Buttons: Power On/Off Button, Reset Button, Wi-Fi/WPS Button
- External Power Supply: 12V / 1.5A
- Dimensions (W x D x H): 260.2 × 135 × 41.6 mm
Antenna Type
- Four external antennas
- Antenna gain: 2 × 4dBi for 2.4GHz and 2 × 5dBi for 5GHz
Wireless
- Wireless Standards: IEEE 802.11ax/ac/n/a (5GHz), IEEE 802.11ax/n/g/b (2.4GHz)
- Frequency: 2.4GHz and 5GHz
- Signal Rate: 1201 Mbps on 5GHz, 574 Mbps on 2.4GHz
- Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
- Wireless Security: WPA/WPA2/WPA3 Encryption
- Transmission Power:
- CE: < 20 dBm (2.4GHz), < 23 dBm (5.15GHz–5.25GHz)
- FCC: < 30 dBm (2.4GHz & 5.15GHz–5.825GHz)
- Wireless Scheduling: Supports 2.4GHz and 5GHz wireless scheduling
- Mesh Technology: EasyMesh compatible and supports 802.11k/v/r
Software
- QoS: Hardware QoS, Flow Classification
- Operating Modes: Router, Access Point
- WAN Type: Dynamic IP / Static IP / PPPoE / PPTP / L2TP (Multi-WAN)
- Management: Access Control, Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDNS, NO-IP
- VPN Pass-Through: IPSec, PPTP, L2TP
- Access Control: Parental Controls, Whitelist, Blacklist
- Firewall: DoS Protection, SPI Firewall, IP and MAC Address Binding
- Protocols: IPv4, IPv6
- Advanced Features: Multi-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network
- VPN Server: PPTP, OpenVPN, IPSec
System Requirements
- Operating Systems: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, NetWare, UNIX or Linux
- Browser: Java-enabled browser
Environment
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10%–90% non-condensing
- Storage Humidity: 5%–90% non-condensing
Included Items
- Wi-Fi 6 EX220 AX1800 Router
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
Package Contents
- TP-Link AX1800 Wi-Fi 6 Dual Band Gigabit Router 5dBi – EX220
Weight
- 880 grams (gross weight with packaging)
